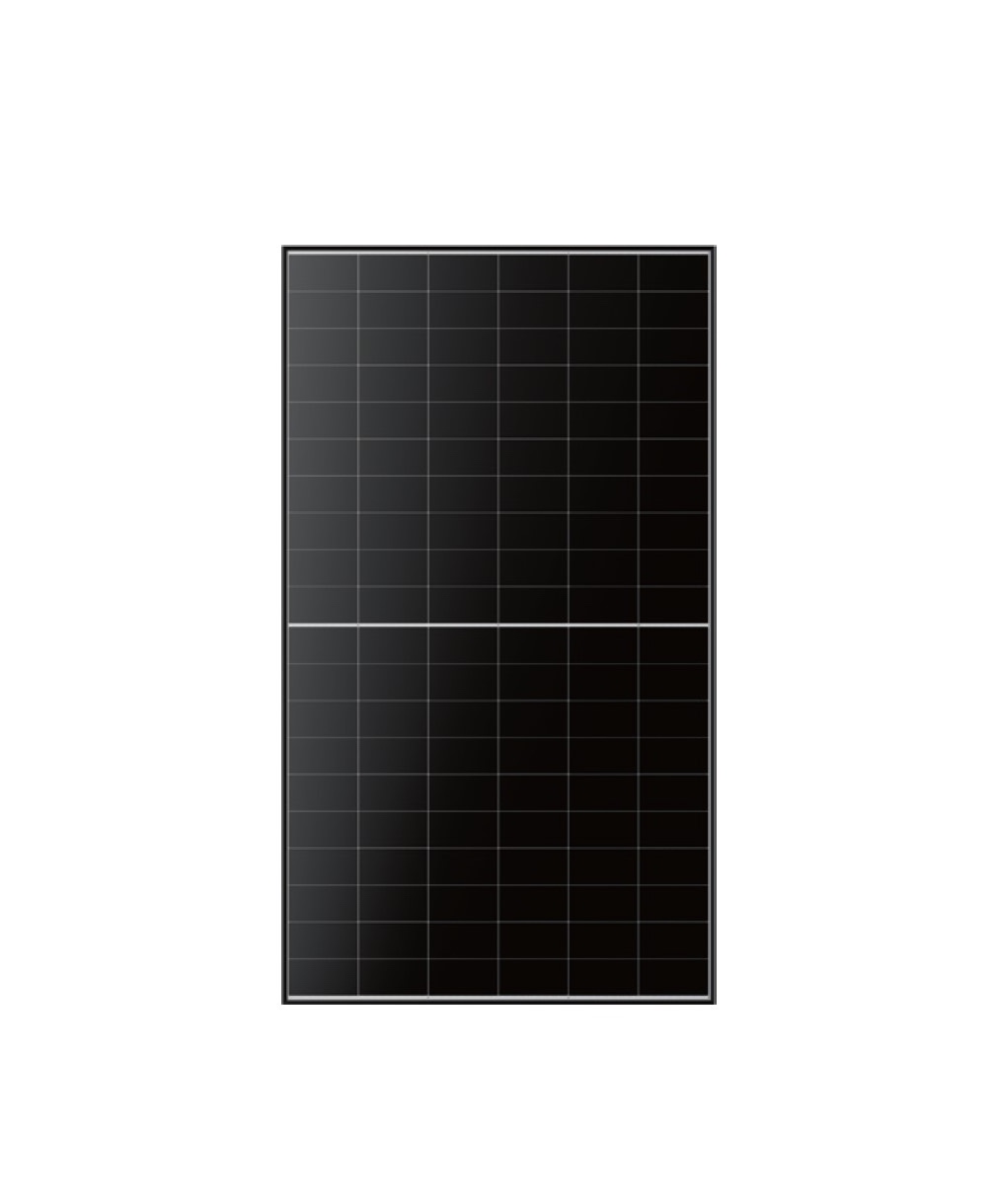

LONGi LR7-60HVD 540

Certifications: IEC 61215, IEC 61730, ISO9001:2015, ISO14001:2015, ISO45001:2018, IEC62941

Warranty:15-year Warranty for Materials and Processing & 30-year Warranty for Extra Linear Power Output

Code: LONGi LR7-60HVD 540

LONGi LR7-60HVD 540 photovoltaic module designed for high energy generation performance and installation flexibility.

More flexible installation methods, suitable for short frame clamps mounting with high mechanical loading
High efficiency with better energy generation performance
N-type TaiRay wafer & HPBC 2.0 innovative technology enhances high product reliability
Obtain fire rating class A test report
Maximum Efficiency: 24.6%
Power Tolerance: 0~3%
First Year Power Degradation: 1%
Year 2-30 Power Degradation: 0.35%
BC-CELL Lower Operating Temperature

LONGi LR7-60HVD 540 photovoltaic module designed for high energy generation performance and installation flexibility.

More flexible installation methods, suitable for short frame clamps mounting with high mechanical loading
High efficiency with better energy generation performance
N-type TaiRay wafer & HPBC 2.0 innovative technology enhances high product reliability
Obtain fire rating class A test report
Maximum Efficiency: 24.6%
Power Tolerance: 0~3%
First Year Power Degradation: 1%
Year 2-30 Power Degradation: 0.35%
BC-CELL Lower Operating Temperature

Additional information

Cell Orientation:	120 (6×20)
Junction Box:	IP68, three diodes
Output Cable:	4mm², +400, -200mm / ±1400mm length can be customized

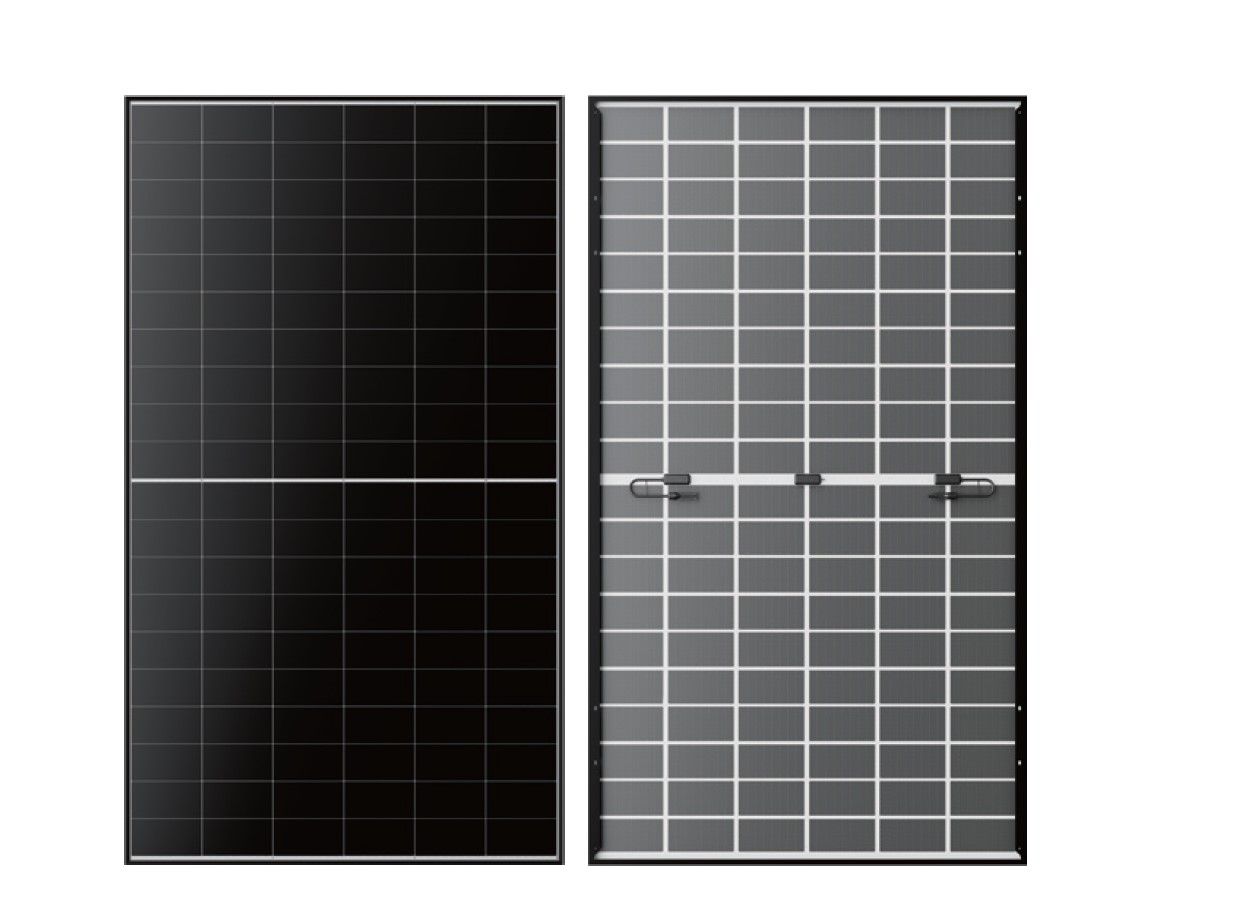

Glass:	Double glass 2.0mm coated tempered glass + 2.0mm semi-tempered glass
Frame:	Anodized aluminum alloy frame
Weight:	28kg

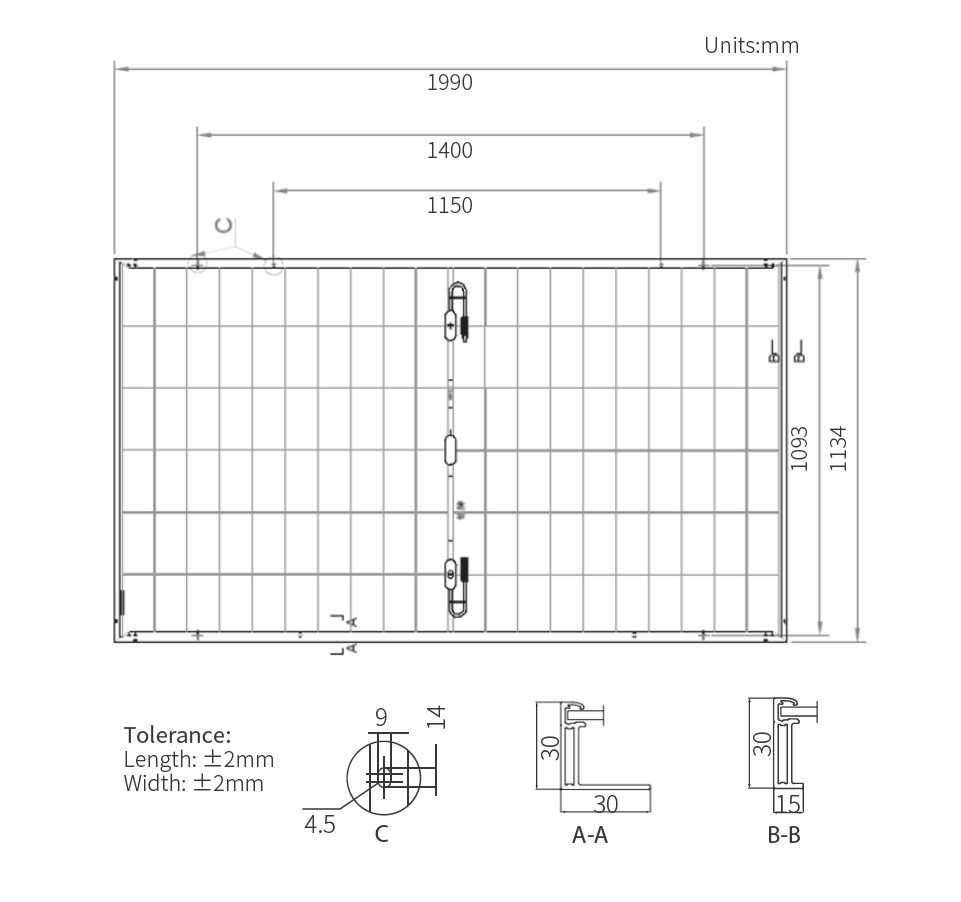

Dimension:	1990 × 1134 × 30mm
Packaging:	36pcs per pallet / 180pcs per 20'GP / 792pcs per 40'HC
Power Output Tolerance:	0~3%
Maximum System Voltage:	DC1500V (IEC)
Maximum Series Fuse Rating:	30A
Protection Class:	Class II
Bifaciality:	70±5%
