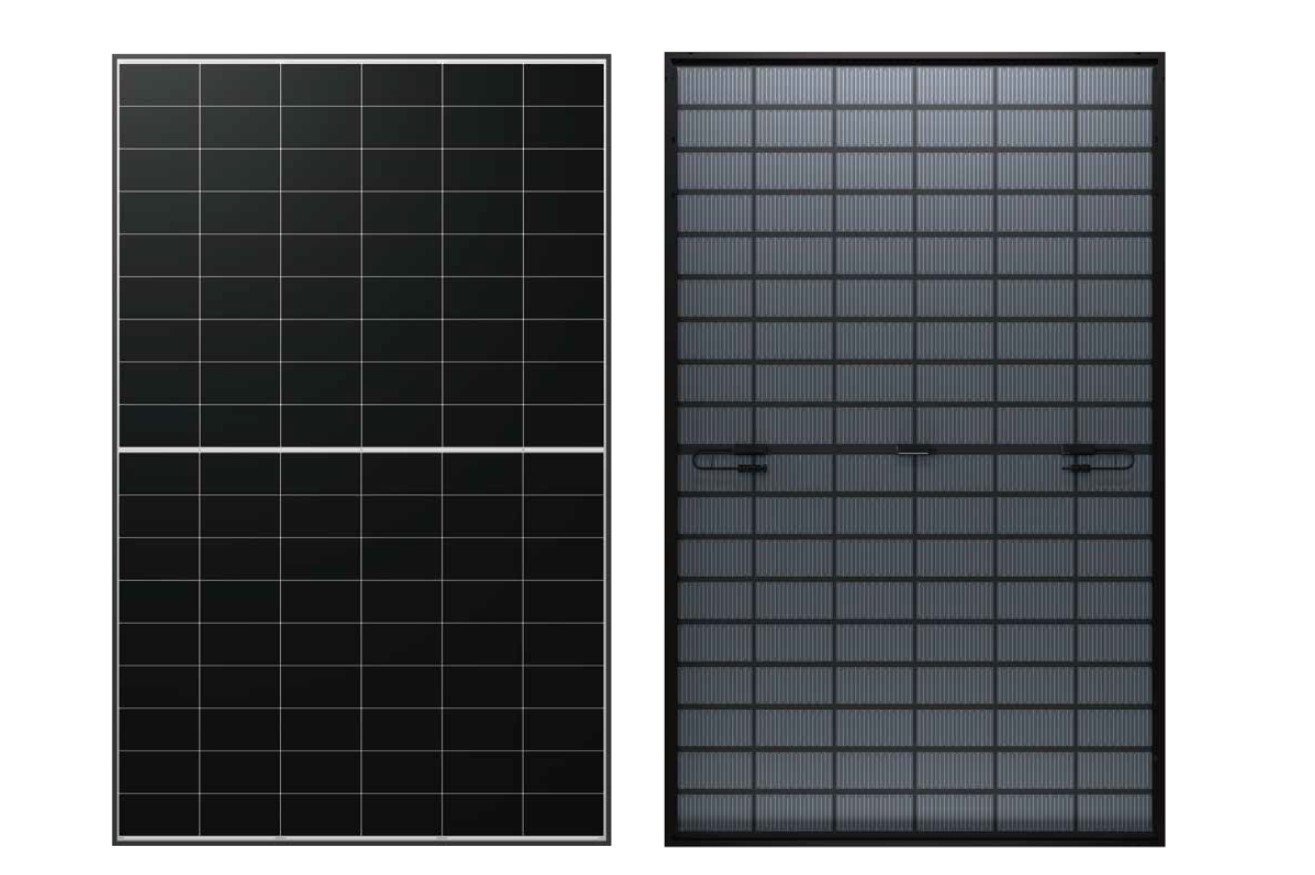

LONGi LR7-54HVD 480

Certifications: IEC 61215, IEC 61730, ISO9001: Quality Management System, ISO14001: Environment Management System, ISO45001: Occupational Health and Safety, IEC62941: Guideline for module design qualification and type approval

Warranty: 15-year Warranty for Materials and Processing & 30-year Warranty for Extra Linear Power Output

Code: LONGi LR7-54HVD 480

LONGi LR7-54HVD 480 photovoltaic module featuring N-type TaiRay wafer, HPBC2.0 technology, and 0BB innovative structure. Designed for high energy generation performance with anti-shading capability and prevention of localized overheating.

Key Features

  • Highest efficiency with the best energy generation performance
  • N-type TaiRay wafer & HPBC2.0 & 0BB innovative structure
  • Anti-Shading & Prevent Localized Overheating
  • Longer product warranty, better service
  • Maximum Module Efficiency: 24.3%
  • Power Tolerance: 0~3%
  • First Year Power Degradation: <1%
  • Year 2-30 Power Degradation: 0.35%
  • BC-CELL Lower Operating Temperature

LONGi LR7-54HVD 480 photovoltaic module featuring N-type TaiRay wafer, HPBC2.0 technology, and 0BB innovative structure. Designed for high energy generation performance with anti-shading capability and prevention of localized overheating.

Key Features

  • Highest efficiency with the best energy generation performance
  • N-type TaiRay wafer & HPBC2.0 & 0BB innovative structure
  • Anti-Shading & Prevent Localized Overheating
  • Longer product warranty, better service
  • Maximum Module Efficiency: 24.3%
  • Power Tolerance: 0~3%
  • First Year Power Degradation: <1%
  • Year 2-30 Power Degradation: 0.35%
  • BC-CELL Lower Operating Temperature

Additional information

Cell Orientation:

108 (6×18)

Junction Box:

IP68

Output Cable:

4mm², +400, -200mm / ±1200mm length can be customized

Glass:

Double glass, 2.0mm coated tempered glass + 1.6mm semi-tempered glass

Frame:

Black anodized aluminum alloy frame

Weight:

23.5kg

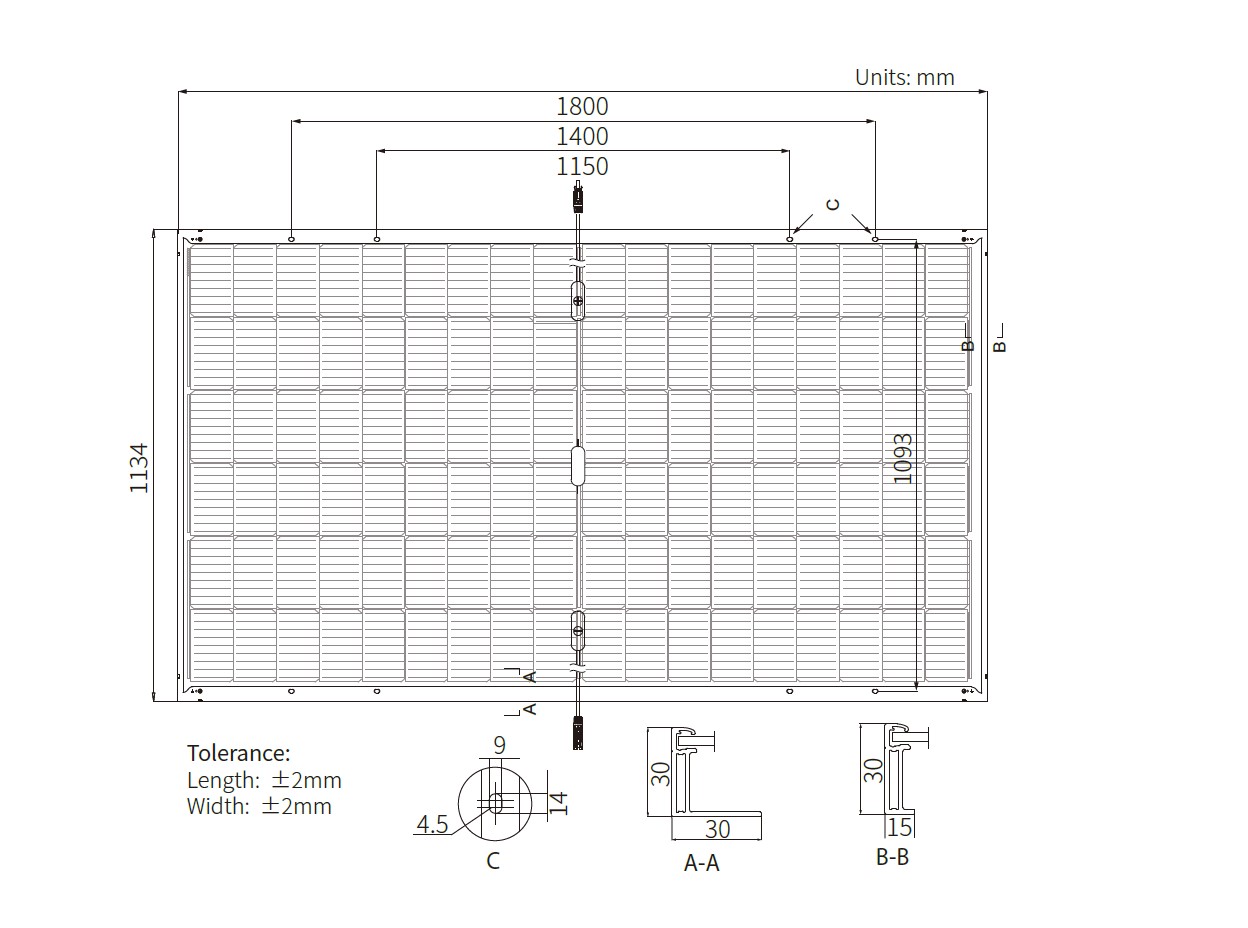

Dimension:

1800 × 1134 × 30mm

Packaging:

36pcs per pallet / 216pcs per 20'GP / 864pcs per 40'HC

Protection Class:

Class II

Maximum Series Fuse Rating:

30A

Maximum System Voltage:

DC1500V (IEC)

Power Output Tolerance:

0~3%

Bifaciality:

70±5%
