LONGi Hi-MO X10 Scientist LR7-60HVH 535 Monofacial Solar Panel

Certifications: IEC 61215, IEC 61730, IEC 62941, ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, TUV & CE

Warranty: 15-Year Materials & 30-Year Linear Power Warranty with 88.85% guaranteed power performance at year 30

Code: LR7-60HVH 535

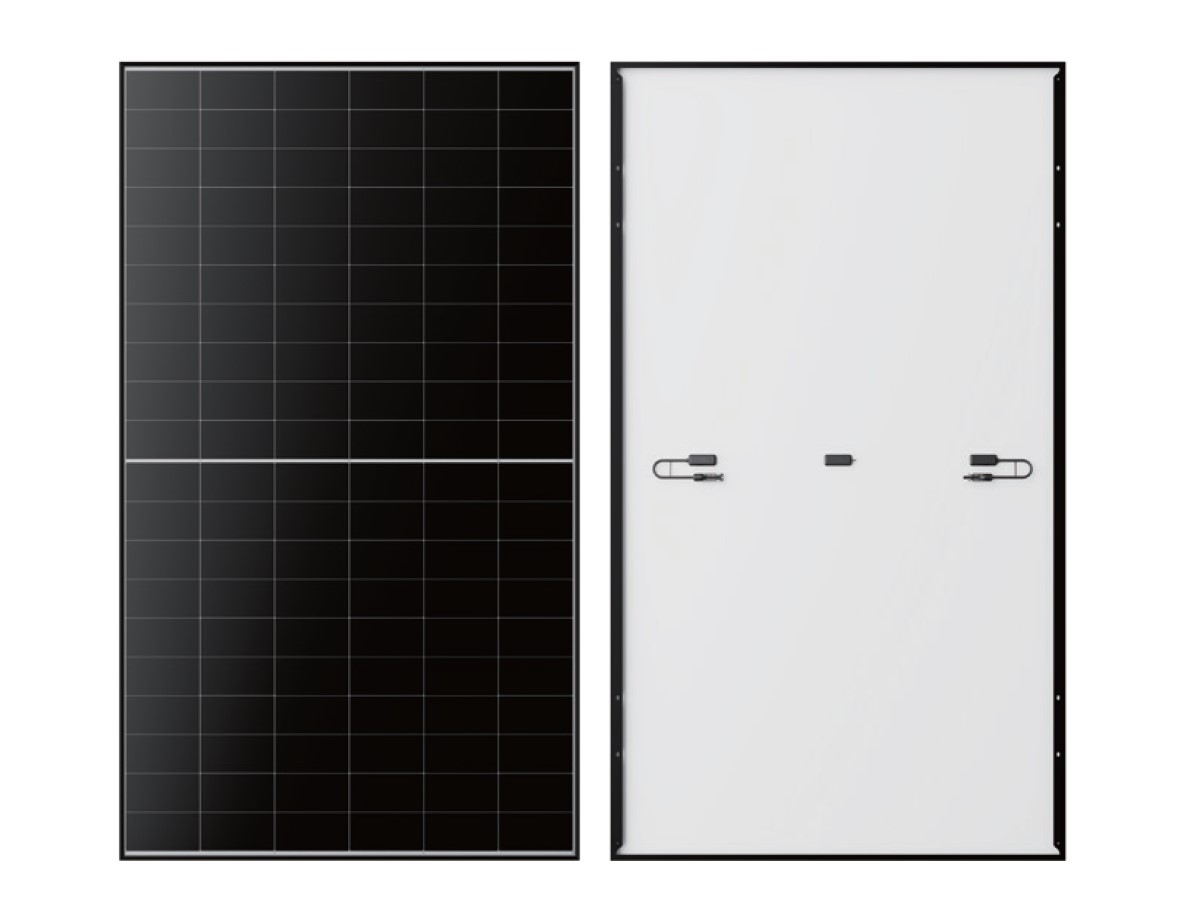

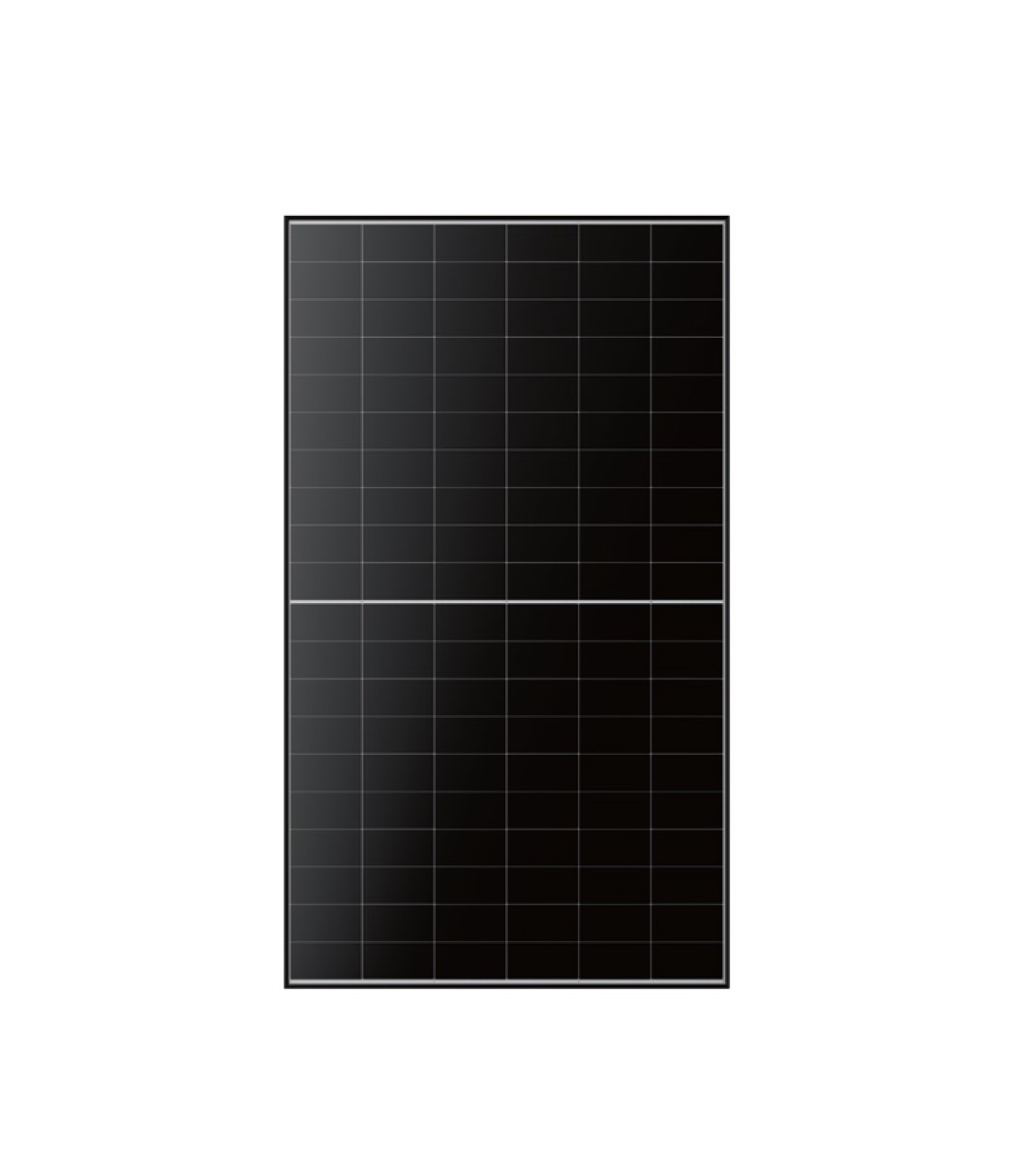

LONGi Hi-MO X10 Scientist LR7-60HVH 535 Monofacial Solar Panel

LONGi Hi-MO X10 Scientist LR7-60HVH 535 Monofacial Solar Panel - Image 2

LONGi Hi-MO X10 Scientist LR7-60HVH 535 Monofacial Solar Panel - Image 3

The Hi-MO X10 Scientist (LR7-60HVH 535) features cutting-edge N-type TaiRay wafer and HPBC 2.0 innovative technology, achieving a maximum module efficiency of up to 24.82%.

Key Features:

Advanced Tech: HPBC 2.0 and N-type TaiRay wafer technology for superior product reliability and performance.
Optimized Structure: Lower operating temperatures (BC-Cell) and highly flexible installation configurations, perfectly suited for short-frame clamp mounting under heavy static loads.
Industry-Leading Warranty: Backed by a 15-year materials and processing warranty alongside an extended 30-year linear power output warranty.

Show Price

Description
Additional information

The Hi-MO X10 Scientist (LR7-60HVH 535) features cutting-edge N-type TaiRay wafer and HPBC 2.0 innovative technology, achieving a maximum module efficiency of up to 24.82%.

Key Features:

Advanced Tech: HPBC 2.0 and N-type TaiRay wafer technology for superior product reliability and performance.
Optimized Structure: Lower operating temperatures (BC-Cell) and highly flexible installation configurations, perfectly suited for short-frame clamp mounting under heavy static loads.
Industry-Leading Warranty: Backed by a 15-year materials and processing warranty alongside an extended 30-year linear power output warranty.

Additional information

Cell Orientation:	120 (6×20)
Junction Box:	IP68, 3 diodes
Output Cable:	4mm², +400mm / -200mm (length can be customized to ±1400mm)
Glass:	3.2mm single coated tempered glass
Frame:	Anodized aluminum alloy frame
Weight:	24.5 kg

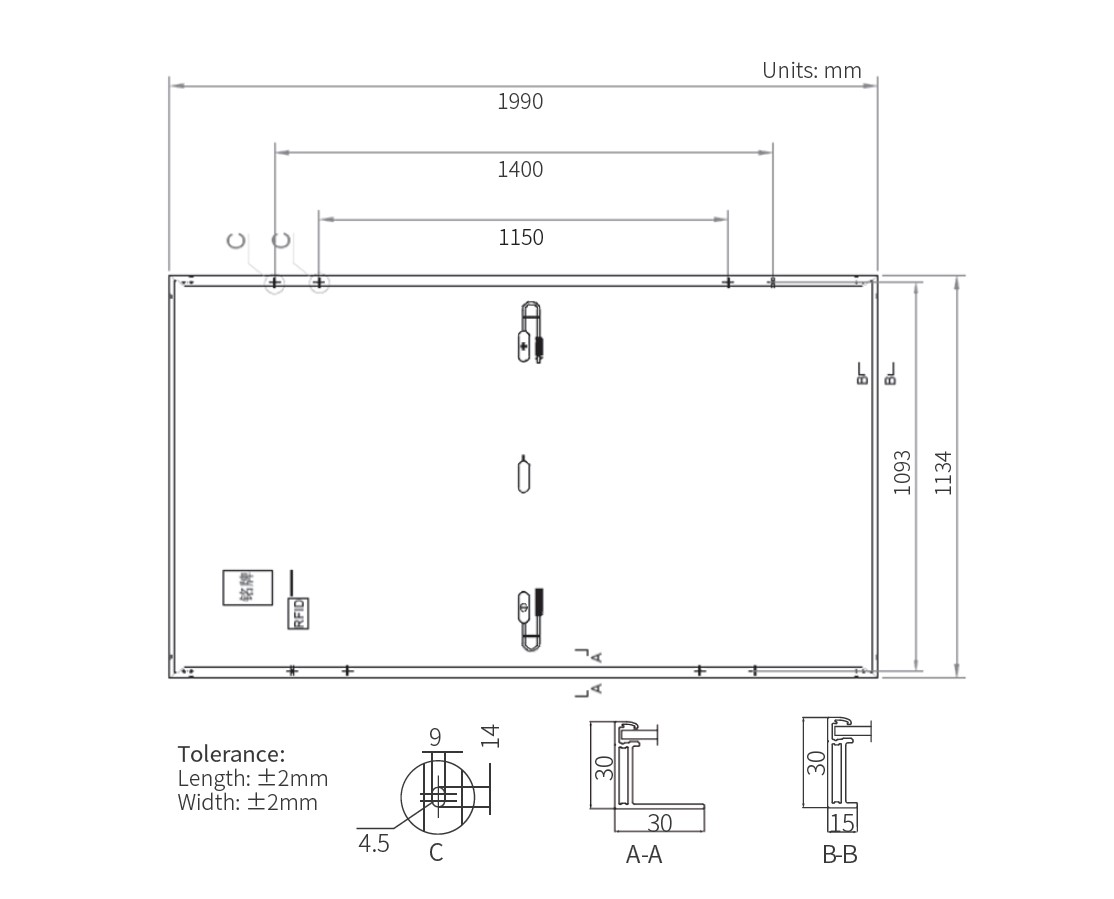

Dimensions:	1990 × 1134 × 30 mm
Max Power:	535W
Open Circuit Voltage:	44.75V
Short Circuit Current:	15.15A
Max Power Voltage:	37.01V
Max Power Current:	14.46A
Efficiency:	23.71%
